Customized Furnaces
One of the main Heldors advantages is customized products. Cause of strong R&D team company able to offer flexible solutions according individual customers need. Equipment can be not only adopted by customer’s requested dimensions but also for special processes like pyrolysis, continuous production, explosive proof applications, dewaxing…
Customized industrial gas fired ovens for burn out of electric motors, powder paints GWO
Customized industrial gas fired ovens for burn out of electric motors, powder paints GWO
System allow to burn out electric motors and afterburn the smokes. System is unique because the main chamber is heated by using afterburned smokes temperature. This allow to reuse the heat and reduces energy consumption.
- Main chamber volume: 3000…10.000l;
- Incinerator
- Heat exchanger (unique one burner system, which allows to use hot smokes)
- EN 1539
- Chamber material: stainless steel;
- Zinc coated and powder painted external casing;
- Modulating gas burner
- Forced smoke extraction
- Electromechanical door
- Electromechanical bogie hearth
- Adjustable system
Customized industrial bell type furnaces
Customized industrial bell type furnaces
The space in production is expensive, therefore bell type solutions one of the best way to solve such issues. Combined systems (heating/cooling) allow fast charge moving between the operations.
- Compact design
- Main chamber volume (second floor): 1000…10.000l;
- Forced air cooling chamber (ground floor)
- Temperature: 260…1300 °C
- Zone control
- Automatic process
- Chamber material: stainless steel;
- Stainless steel frame and casing;
- Double door from two sides
Customized conveyor furnaces
Previous
Next
Customized conveyor furnaces
Continuous production requires fast cycle operations. Belt type or roller heart continues furnaces one of the most effective solutions for such applications. Furnaces is used for heat treatment products where high volume production and low cost are favored.
- Design according the process
- Temperature: 260…1100 °C
- Belt/rollers
- Zone control
- Natural or forced air circulation
- Automatic process
- Smart conveyor placement system
- Samples collection
- Adjustable speed
- Laser sensors

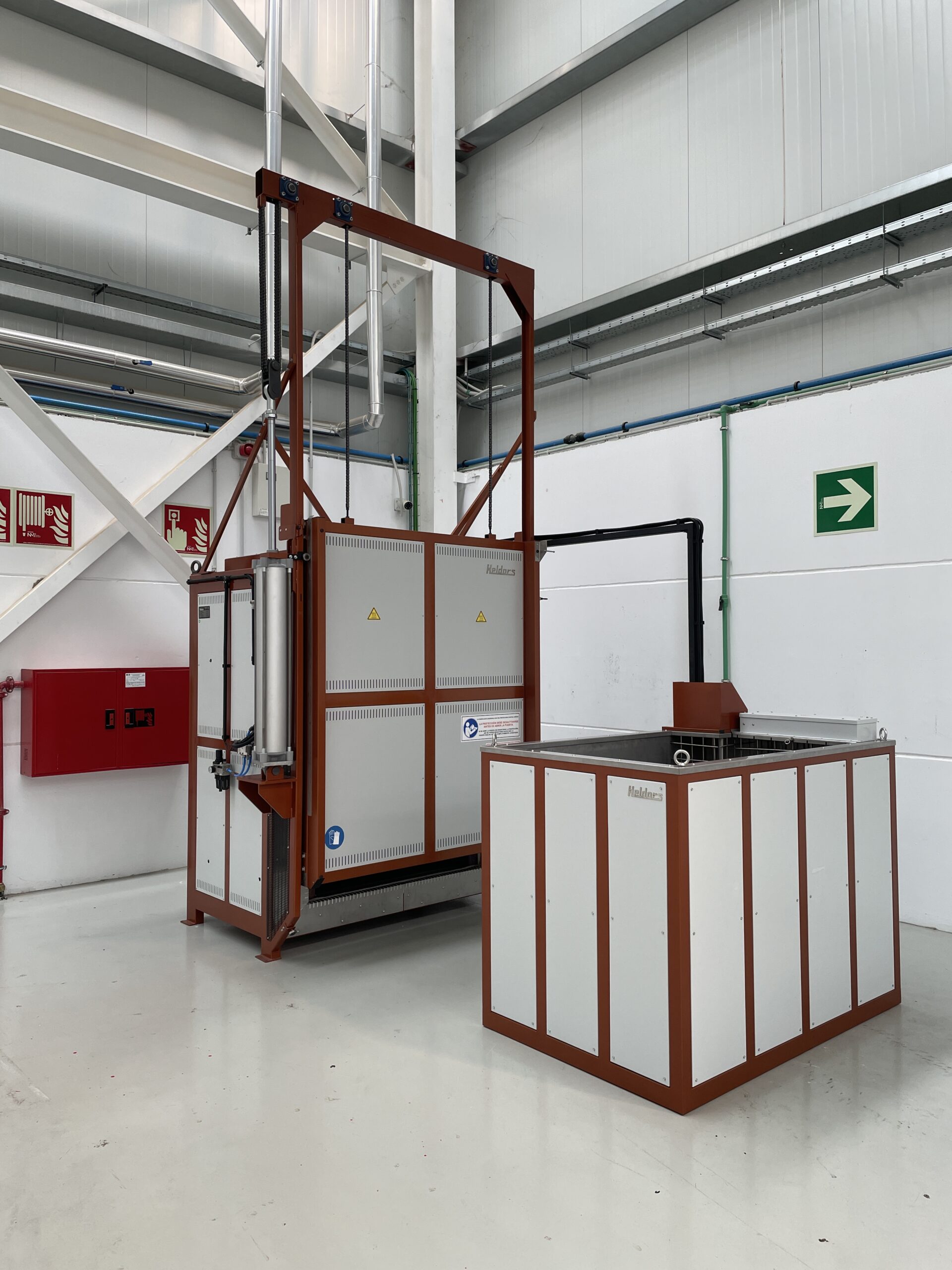

Customized quenching furnaces
Customized quenching furnaces
Heldors offers various quenching systems in air, water, oil. Charge can be quenched in
air or inertial gas applications. System can be manual or automatic
- Design according the process
- Temperature: 900…1000 °C
- Air circulation
- Quenching tanks
- Fast door opening
- Customized loading
- Double water shaking system
