Floor standing industrial chamber furnaces ICF (without air circulation)

Floor standing industrial chamber furnaces ICF (without air circulation)

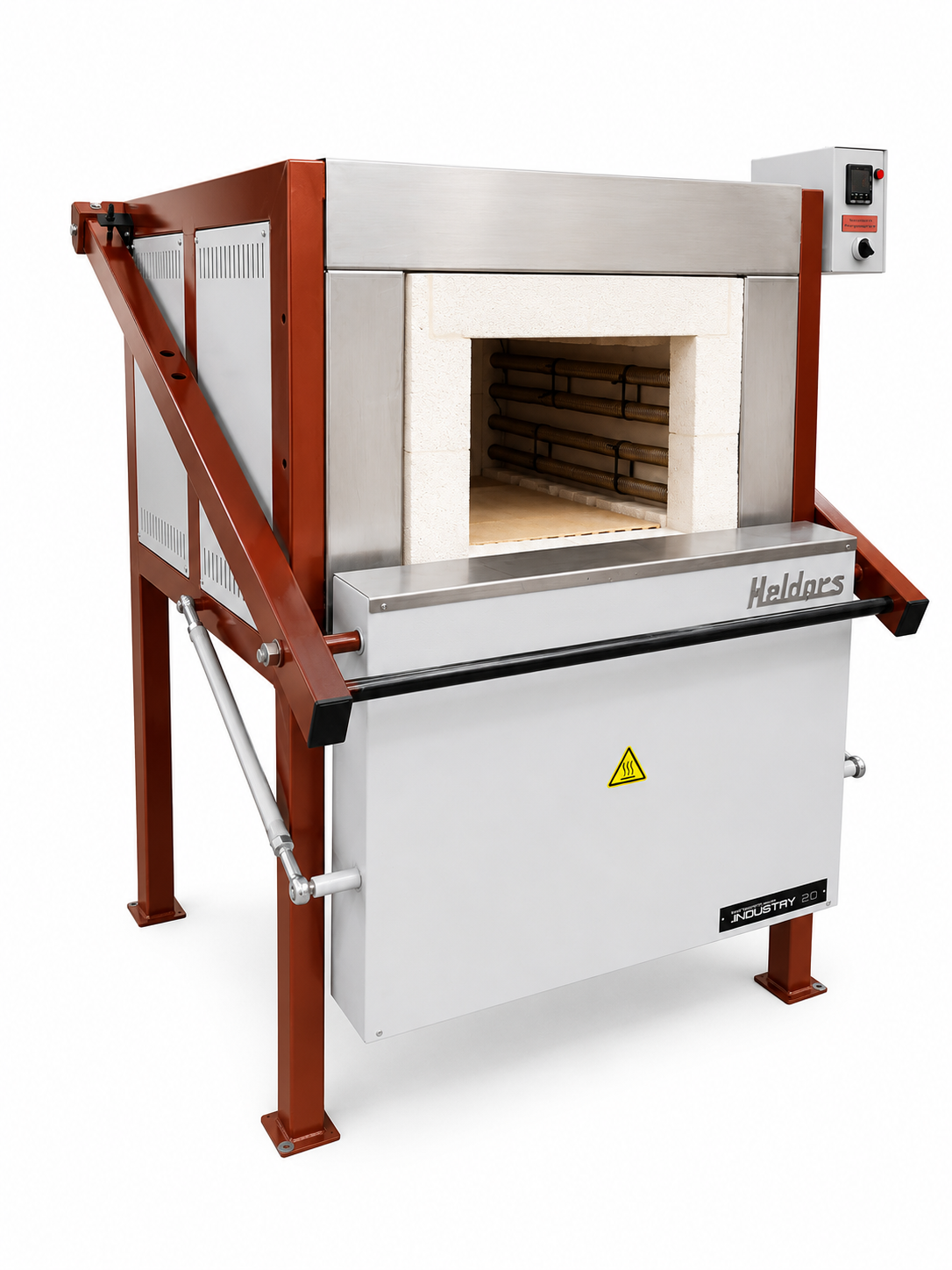

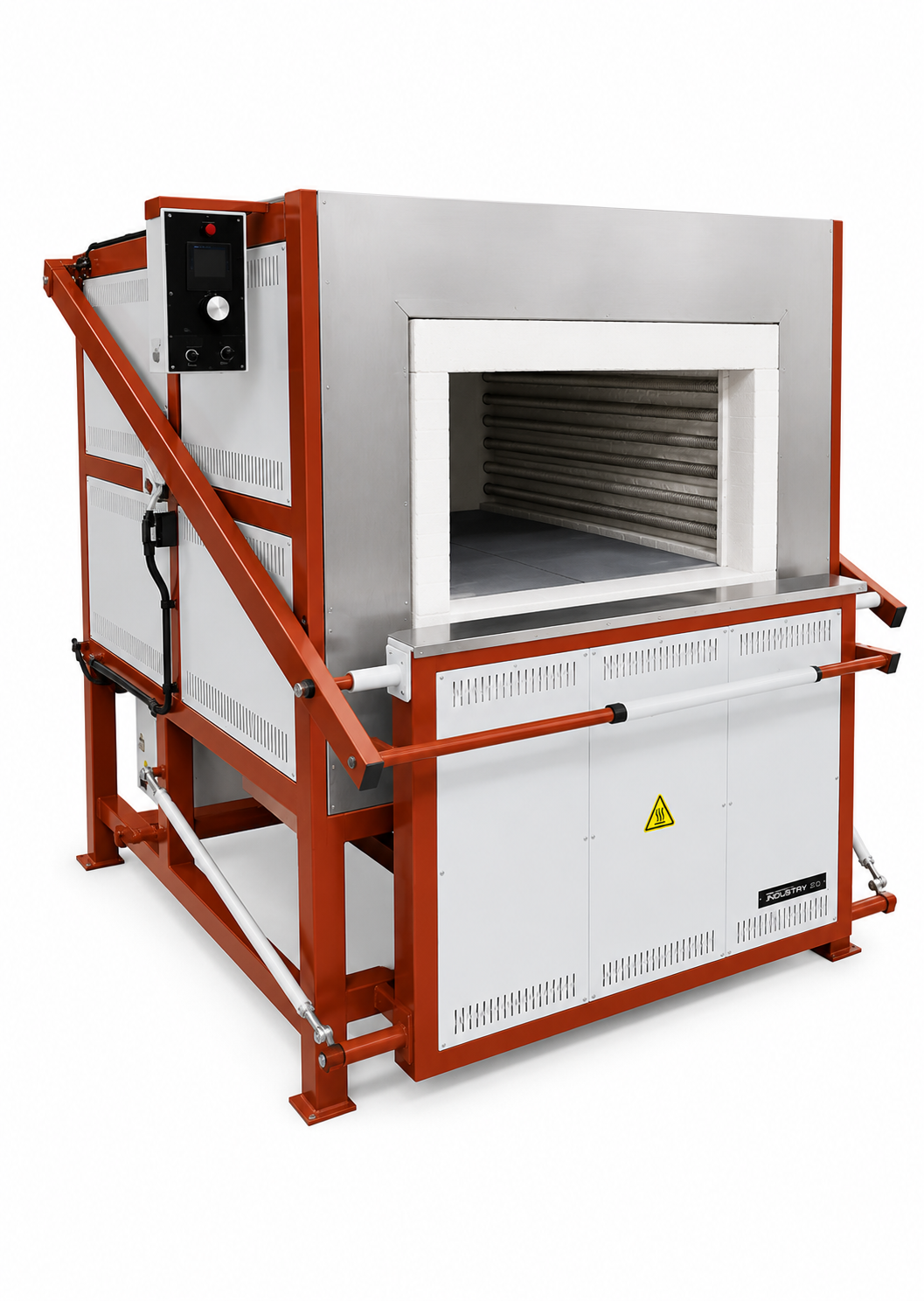

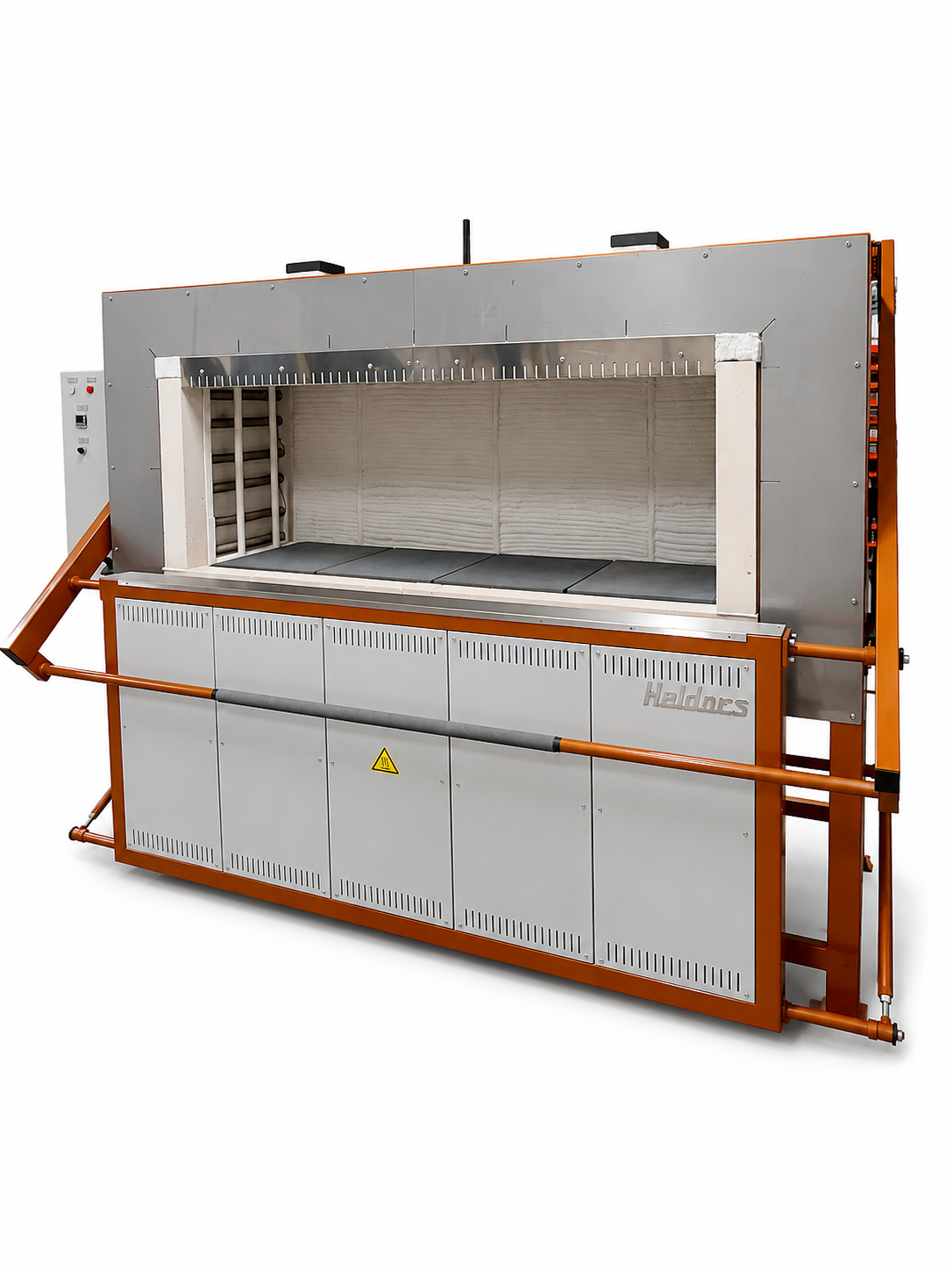

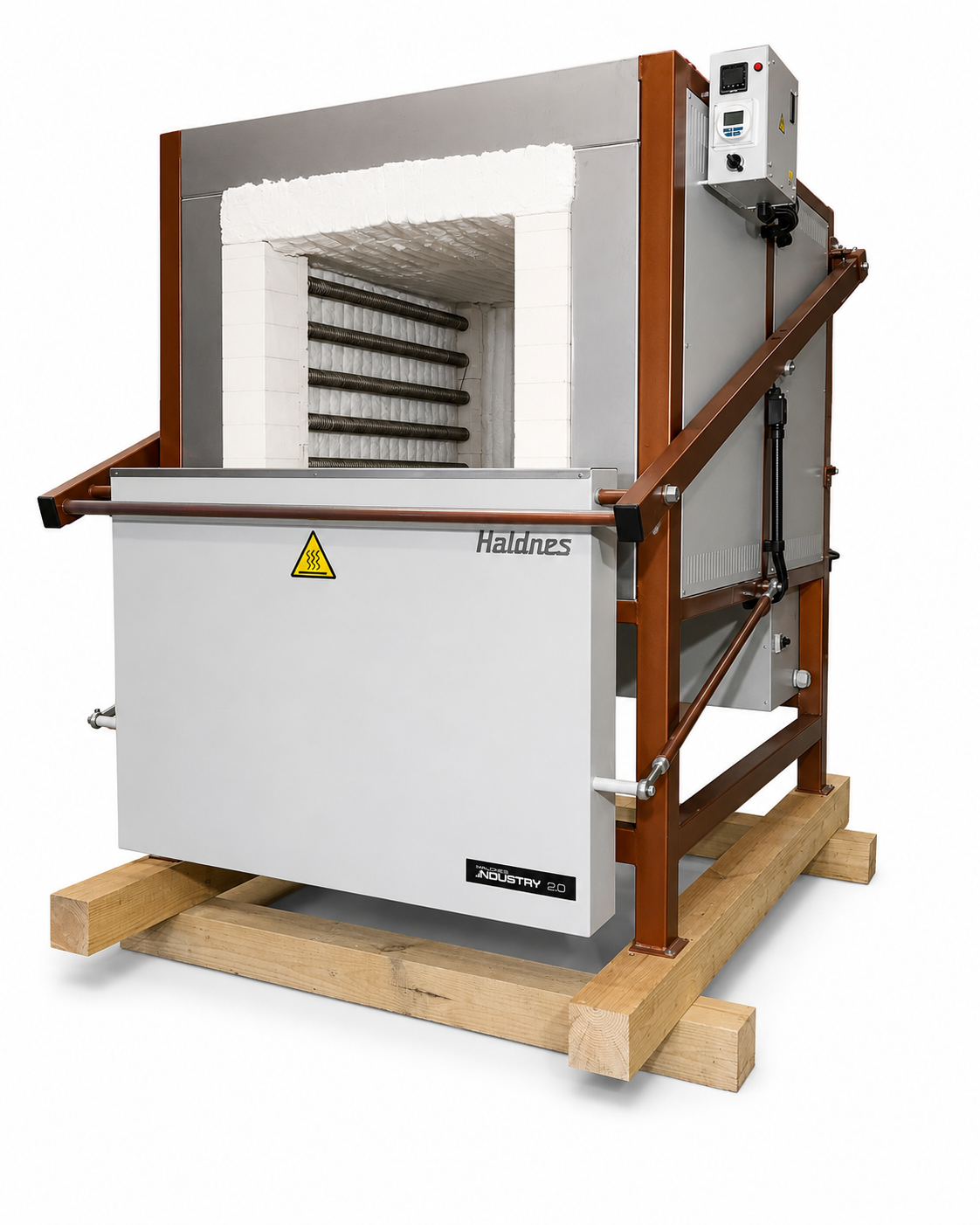

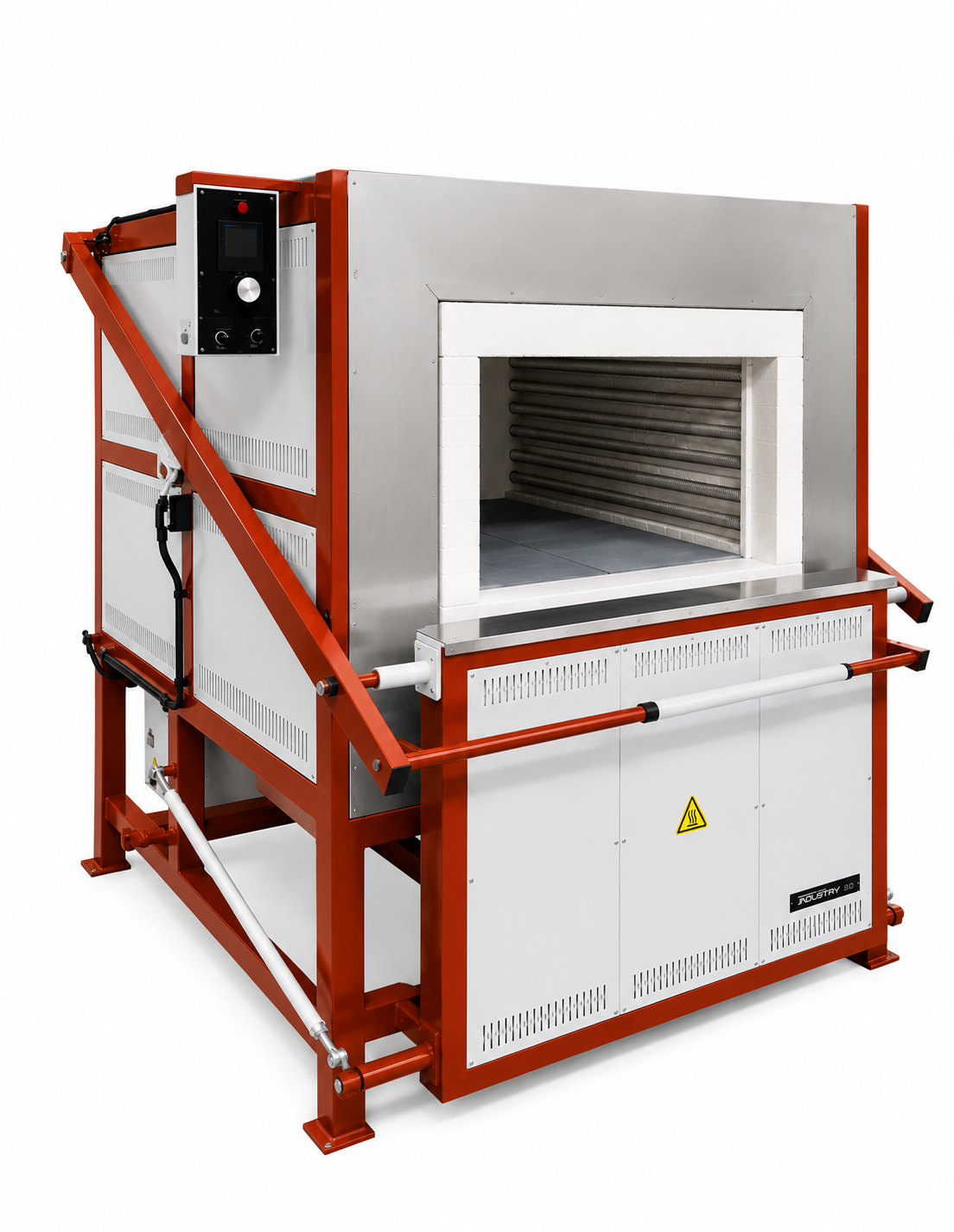

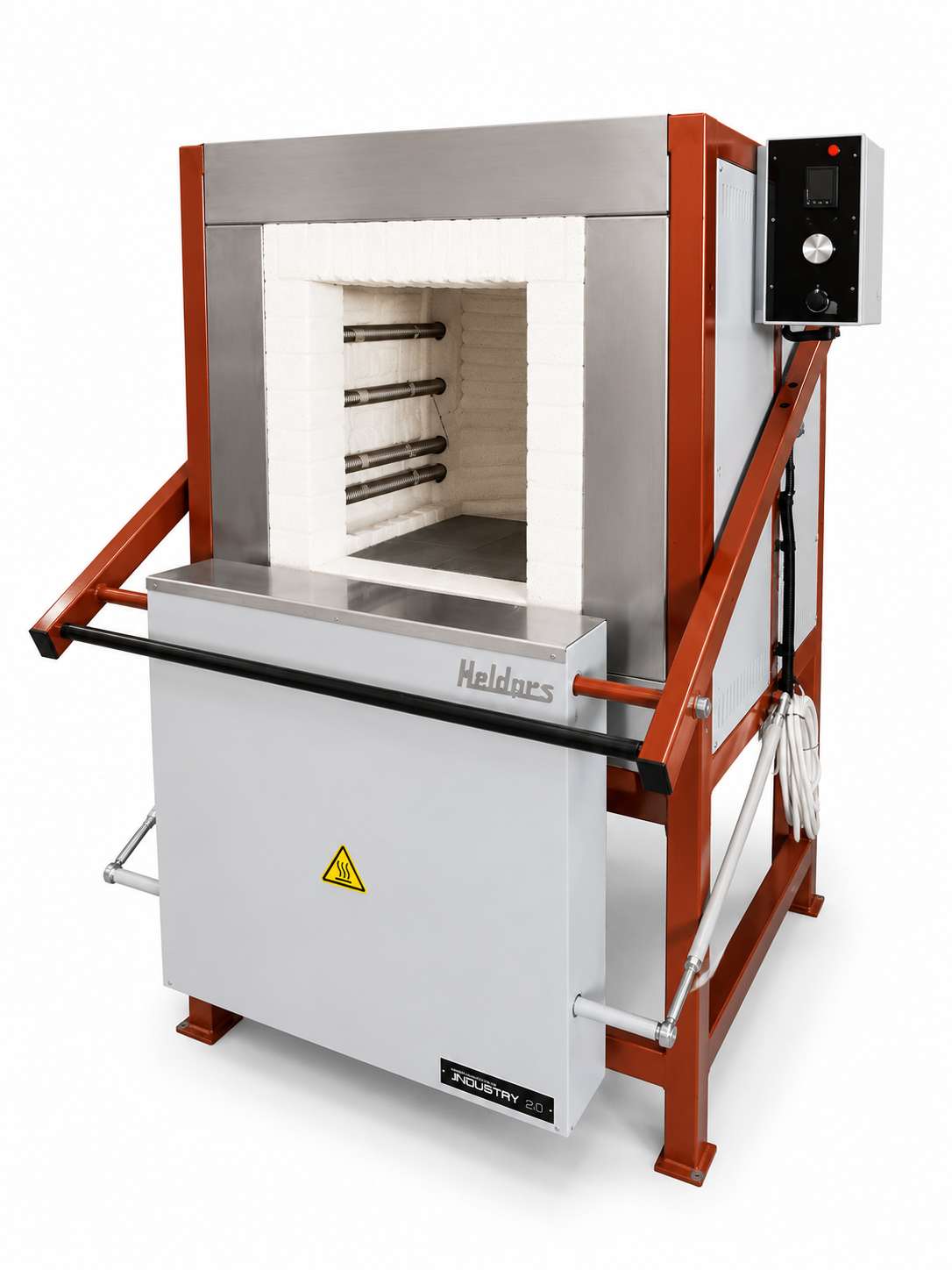

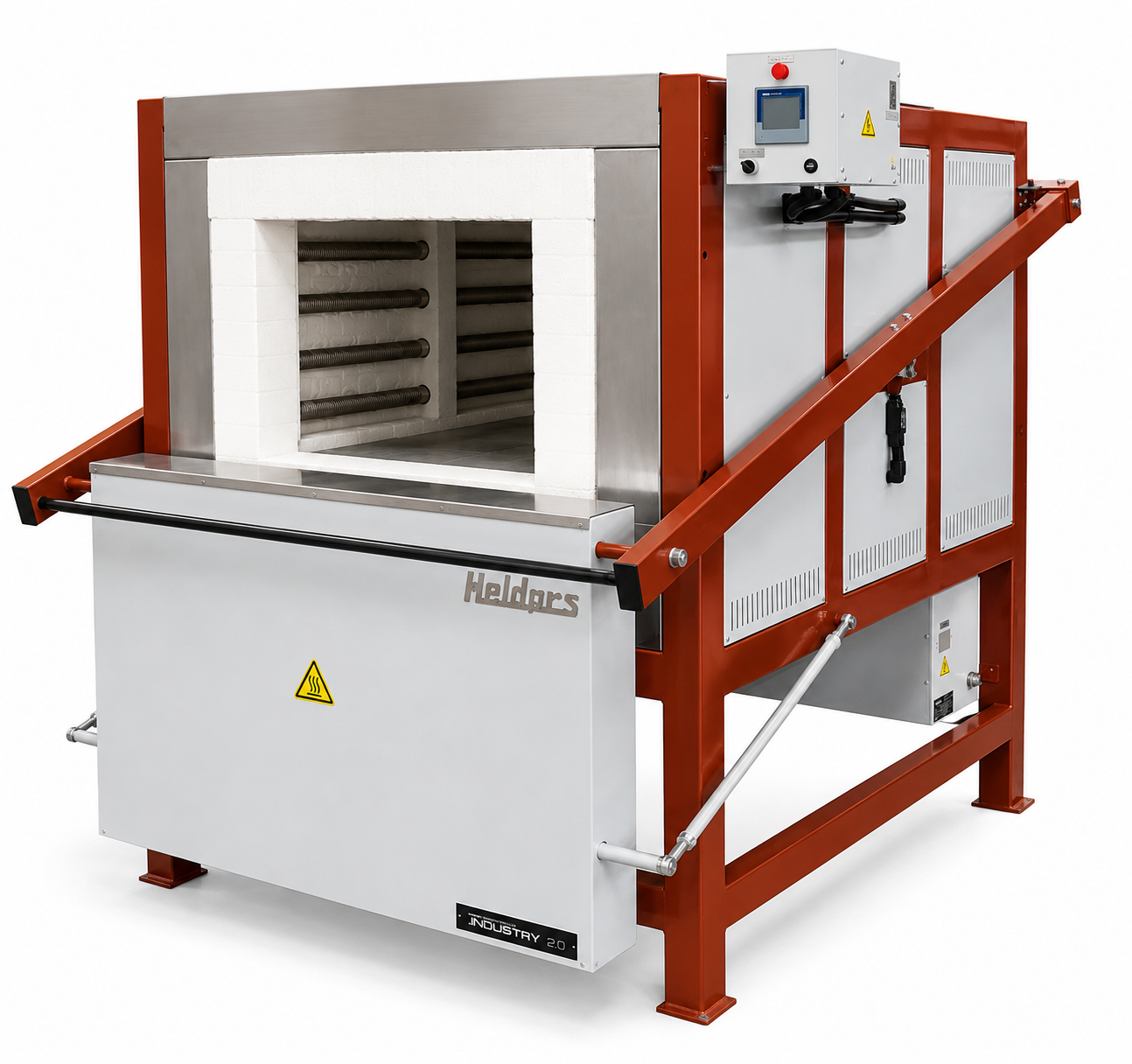

Professional chamber furnaces Heldors ICF line is made for hardening, cementation and other thermal treatment processes of various materials in temperature range from 50⁰C to 1300⁰C in air conditions or with inertial gas (optional). Counterweight helps to open and close the doors very fast and easy.

BASIC MODEL

  • Strong and reliable frame construction
  • Powder painted casing
  • Free radiation wire heating elements on tubes
  • Heating from three sides (two sides and bottom)
  • Ceramic bottom plate
  • Downward doors with counterweight
  • Bearings for easy and durable door opening
  • Chamber front arc and bottom made from bricks
  • Reliable door sealing with fiber
  • Lightweight insulation (low inertia)
  • Hot surfaces around the arc made from stainless steel
  • Top of the door covered with stainless steel (for loading-unloading)
  • Solid state relay control
  • PID temperature controller
  • Thermocouple
  • Independent over heat protection
  • Ventilation

OPTIONS

  • Chamber made from bricks
  • Door made from bricks
  • Silicon carbide bottom plates
  • Silicon carbide protection of heating elements
  • Heat resistant stainless steel bottom plate
  • Cooling fan
  • Container for inertial gas
  • Container for cementation
  • Inertial gas connection with flow meter

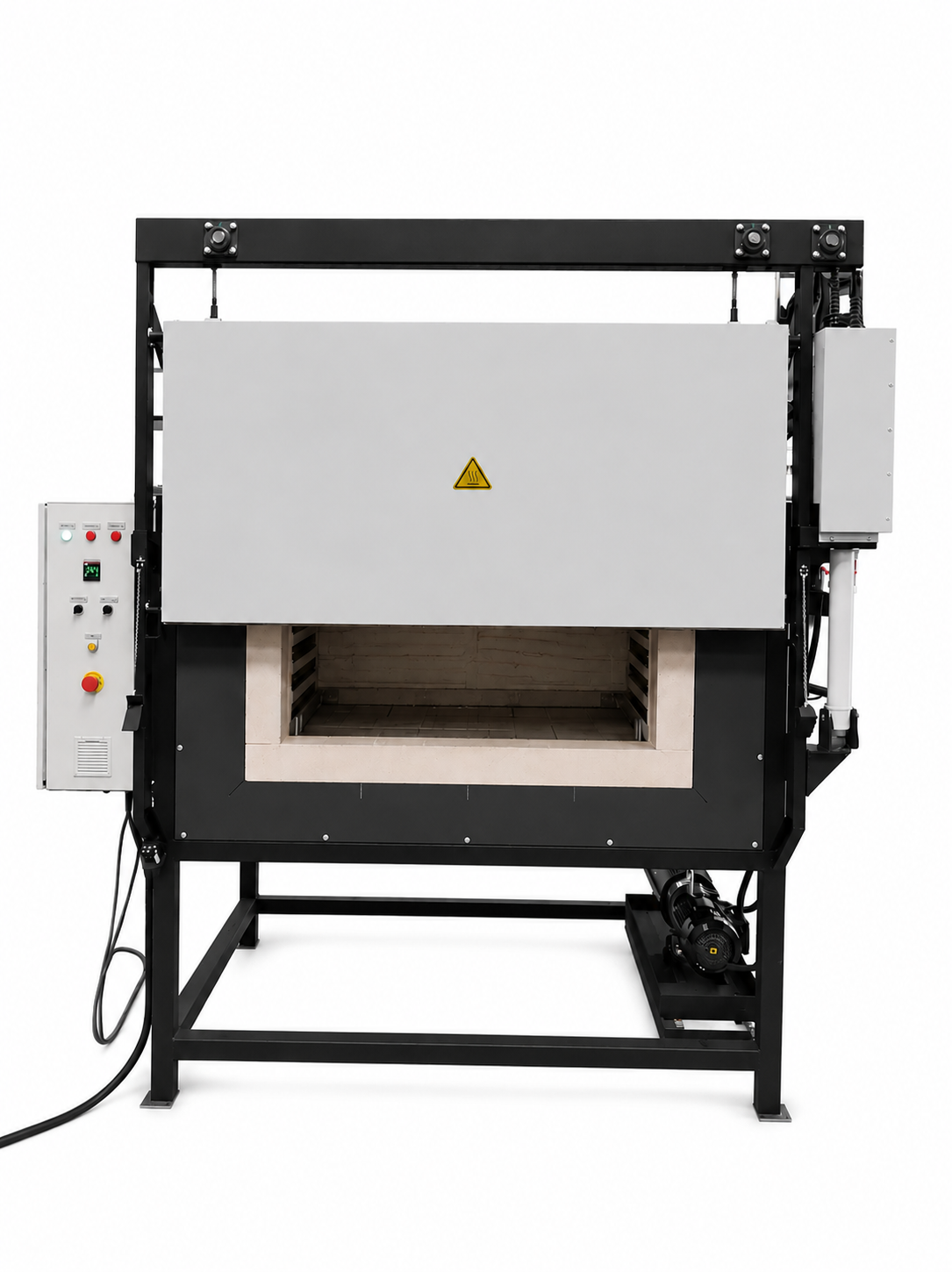

  • Lifting up doors

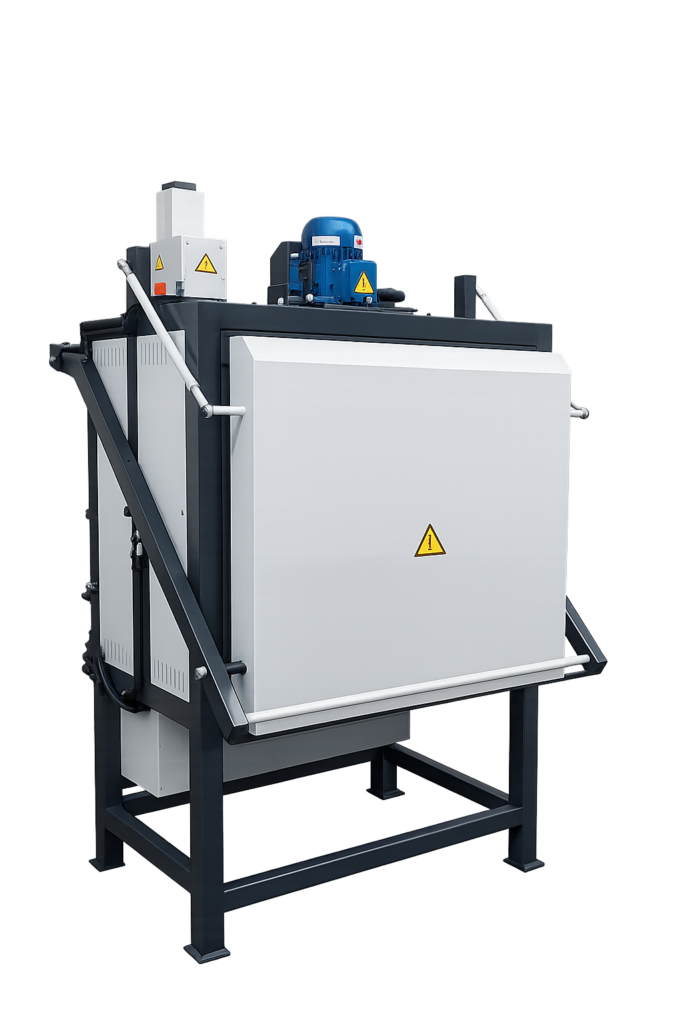

  • Automatic door opening (electromechanical, pneumatic, hydraulic) operated by foot or hand switch
  • Ramp programmable PID controller
  • Touch screen
  • Temperature recorder
  • Zone control
  • Stationary table for load
  • Turning table for load
  • Sensors for emergency door stop
  • Light signals
  • Visual alarm for broken heating elements
  • RS232
  • RS485
  • PC software
Model Contin. temp. ⁰C Max temp. ⁰C Chamber dimensions, mm Max load in the chamber (not concentrated) External dimensions, mm* Chamb. volume, l Power, kW Voltage/Phases
W D H kg W D H
ICF 1100_30 1100 1100 300 350 250 29 880 1060 1235 26 5.5 230/1
ICF 1100_40 1100 1100 330 450 260 42 920 1160 1260 39 5.5 230/1
ICF 1100_50 1100 1100 350 520 250 50 940 1230 1330 46 8 400/ 3
ICF 1100_70 1100 1100 350 770 250 74 940 1480 1330 67 10 400/ 3
ICF 1100_92 1100 1100 430 420 510 101 1340 1380 1805 92 15 400/ 3
ICF 1100_168 1100 1100 600 700 400 185 1395 1410 1675 168 25 400/ 3
ICF 1100_216 1100 1100 400 1500 360 238 1220 2300 1500 216 30 400/ 3
ICF 1100_340 1100 1100 750 1120 400 280 1440 1900 1530 336 42 400/ 3
ICF 1100_660 1100 1100 1000 1320 500 550 1700 2100 1630 660 50 400/ 3
ICF 1100_1100 1100 1100 1000 1800 600 720 1800 2650 1630 1080 70 400/ 3
ICF 1100_1450 1100 1100 1100 2200 600 968 1900 3050 1630 1452 95 400/ 3
Model Contin. temp. ⁰C Max temp. ⁰C Chamber dimensions, mm Max load in the chamber (not concentrated) External dimensions, mm* Chamb. volume, l Power, kW Voltage/Phases
W D H kg W D H
ICF 1200_30 1200 1200 300 350 250 29 300 350 250 26 5.5 230/1
ICF 1200_40 1200 1200 330 450 260 42 330 450 260 39 5.5 230/1
ICF 1200_50 1200 1200 350 520 250 50 350  520  250 46  8 400/ 3
ICF 1200_70 1200 1200 350 770 250 74 350  770  250 67 10 400/ 3
ICF 1200_92 1200 1200 430 420 510 101 1340 1380 1805 92 15 400/ 3
ICF 1200_168 1200 1200 600 700 400 185 1395 1410 1675 168 25 400/ 3
ICF 1200_216 1200 1200 400 1500 360 238 1220 2300 1500 216 30 400/ 3
ICF 1200_340 1200 1200 750 1120 400 280 750  1120  400 336 42 400/ 3
ICF 1200_660 1200 1200 1000 1320 500 550  1000  1320  500 660 50 400/ 3
ICF 1200_1100 1200 1200 1000 1800 600 720 1000  1800  600 1080  70 400/ 3
ICF 1200_1450 1200 1200 1100 2200 600 968 1100 2200 600 1452 95 400/ 3
Model Contin. temp. ⁰C Max temp. ⁰C Chamber dimensions, mm Max load in the chamber (not concentrated) External dimensions, mm* Chamb. volume, l Power, kW Voltage/Phases
W D H kg W D H
ICF 1300_30 1300 1300 300 350 250 29 880 1060 1235 26 7 400/ 3
ICF 1300_40 1300 1300 330 450 260 42 920 1160 1260 39 7 400/ 3
ICF 1300_50 1300 1300 350 520 250 50 940 1230 1330 46 10 400/ 3
ICF 1300_70 1300 1300 350 770 250 74 940 1480 1330 67 15 400/ 3
ICF 1300_92 1300 1300 430 420 510 101 1340 1380 1805 92 18 400/ 3
ICF 1300_168 1300 1300 600 700 400 185 1395 1410 1675 168 30 400/ 3
ICF 1300_216 1300 1300 400 1500 360 238 1220 2300 1500 216 30 400/ 3
ICF 1300_340 1300 1300 750 1120 400 280 1440 1900 1530 336 45 400/ 3
ICF 1300_660 1300 1300 1000 1320 500 550 1700 2100 1630 660 60 400/ 3
ICF 1300_1100 1300 1300 1000 1800 600 720 1800 2650 1630 1080 80 400/ 3
ICF 1300_1450 1300 1300 1100 2200 600 968 1900 3050 1630 1452 110 400/ 3
