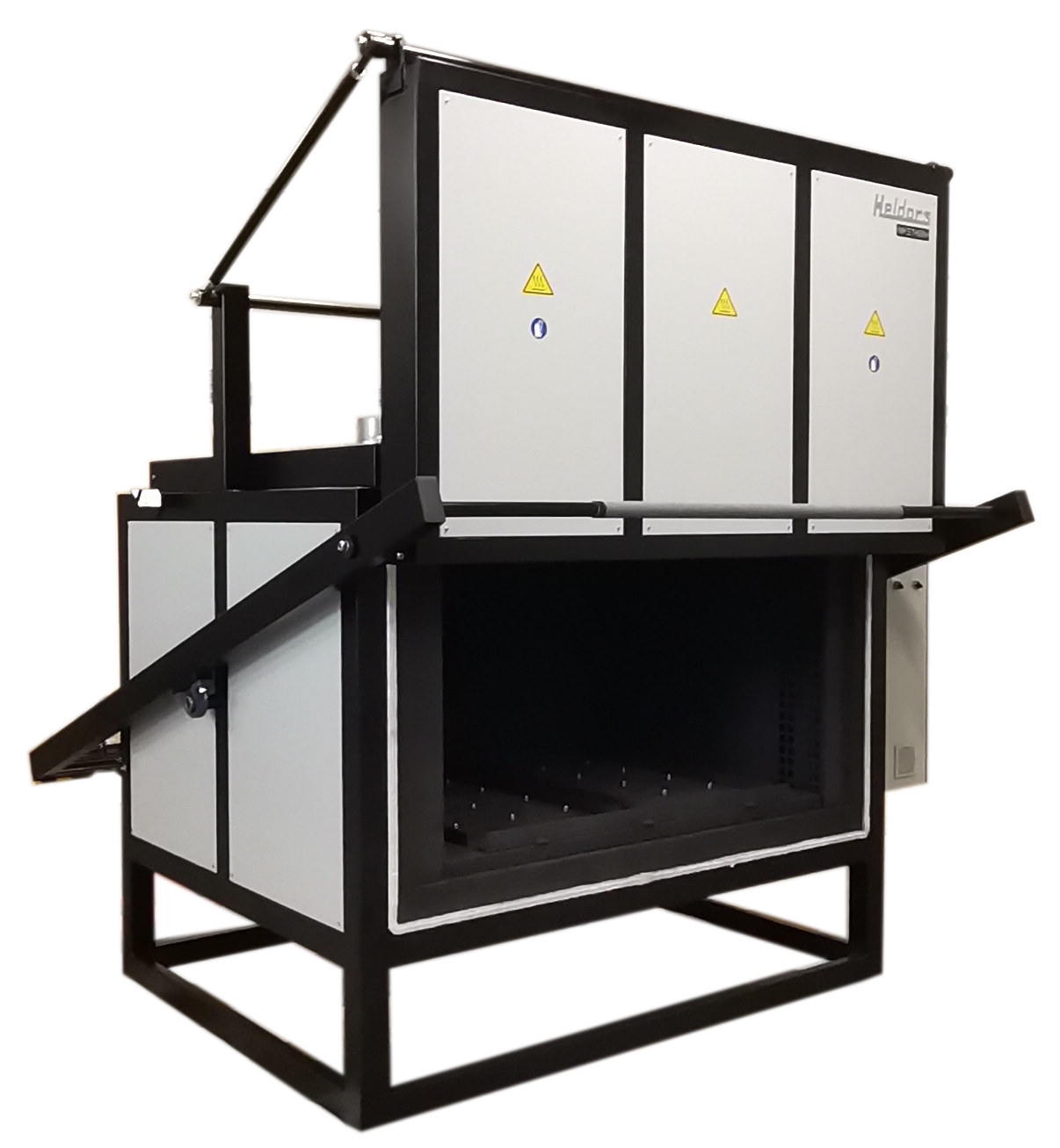

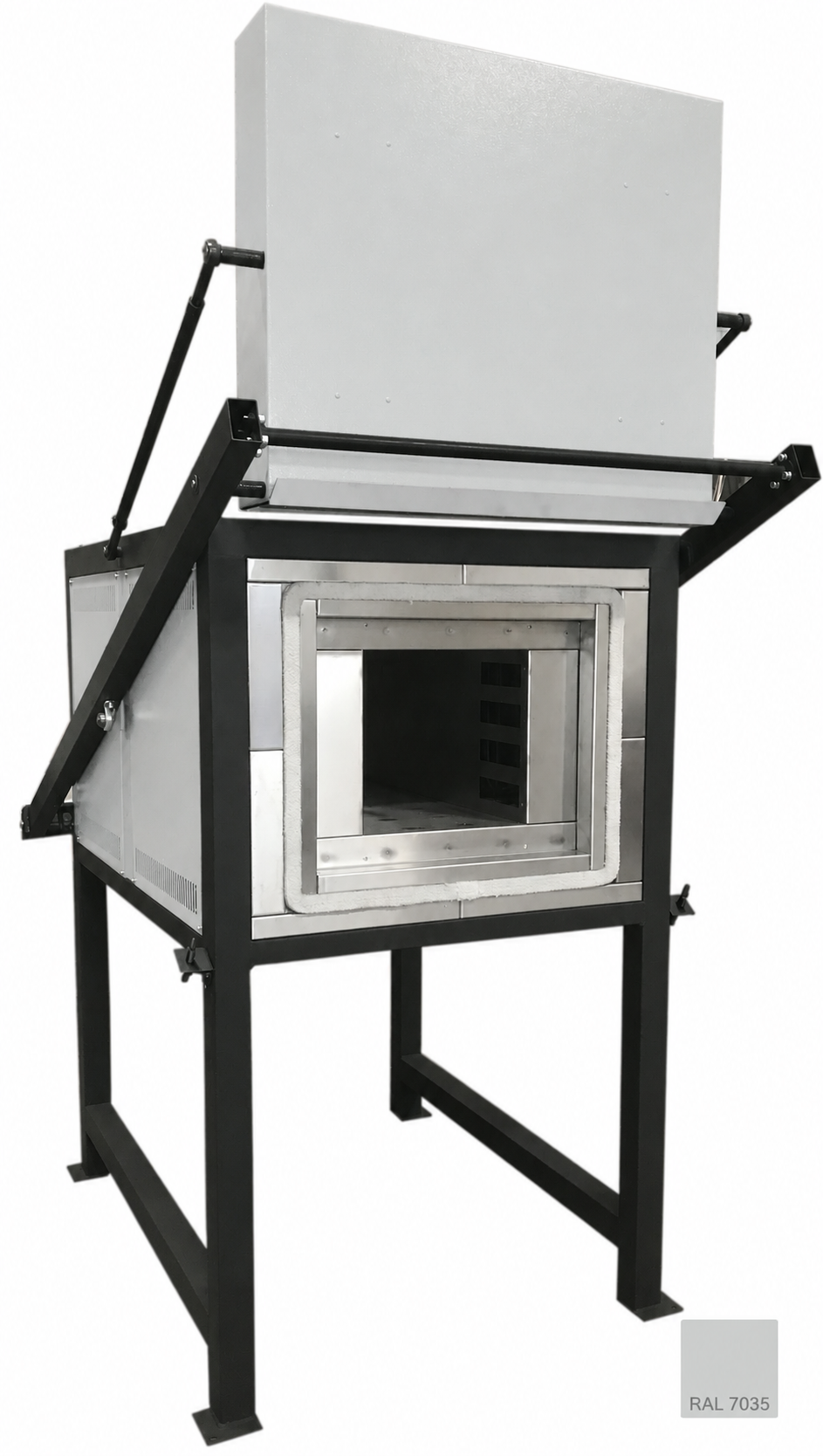

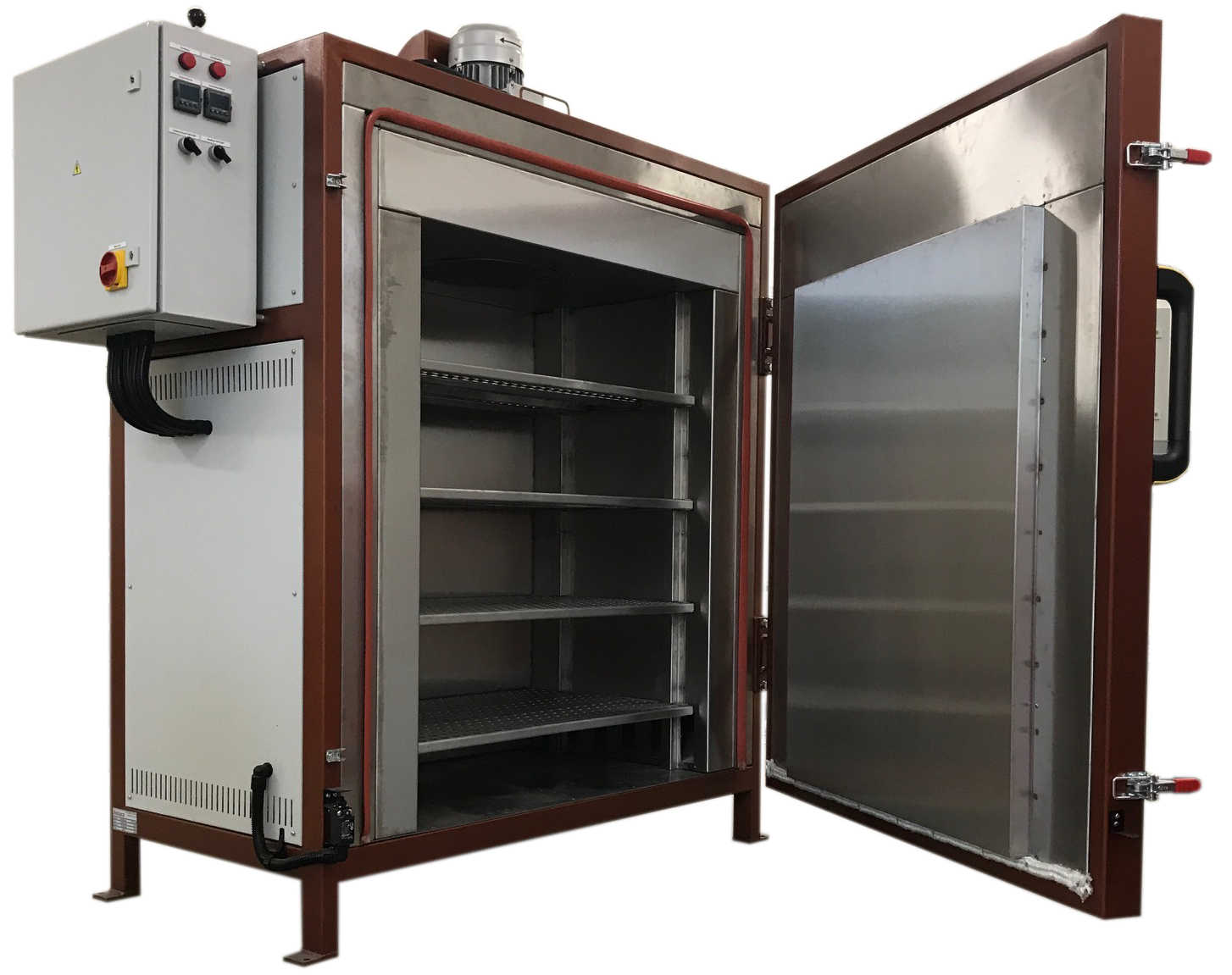

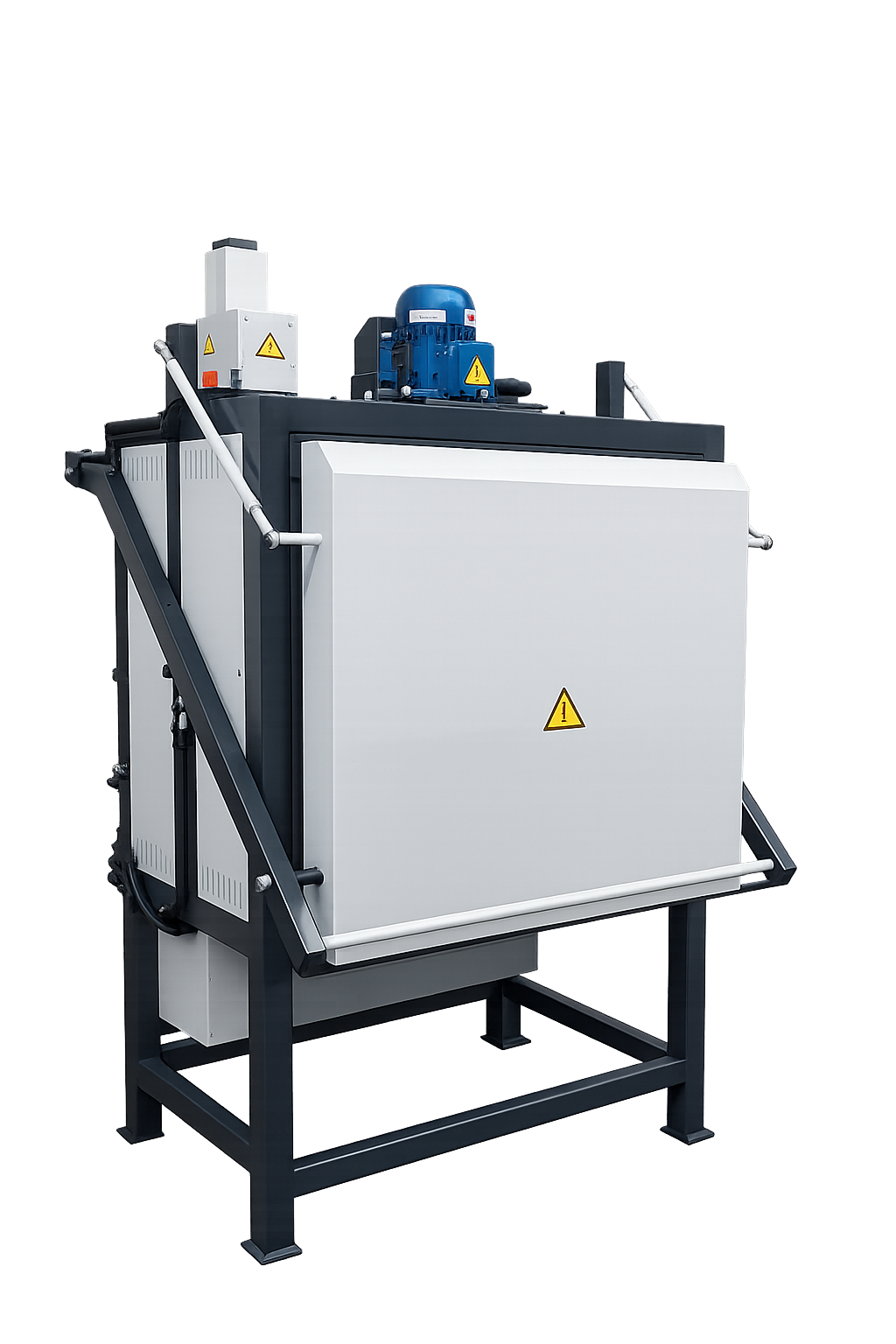

Industrial chamber furnaces with forced air circulation ICO
Professional chamber ovens Heldors ICO line is made for tempering, annealing, ageing, preheating, drying, age hardening and other thermal treatment processes of various materials in temperature range from 50⁰C to 860⁰C in air conditions or with inertial gas (optional). Ovens goes with vertical or horizontal air circulation.
BASIC MODEL
- Strong and reliable frame construction
- Powder painted casing
- Chamber material:
o 260⁰C models: mild steel painted with heat resistant paints (Zinc coated mild steel or stainless steel optional)
o 360⁰C models: mild steel painted with heat resistant paints (stainless steel optional)
o 460-660⁰C models: stainless steel
o 860⁰C models: heat resistant stainless steel + insulation and bricks
- Heating elements mounted in double walls
- Forced air circulation
- Door opens to the side
- Door sealing with silicon gasket (260⁰C models)
- Door sealing with fiber tape (360⁰C-760⁰C models)
- Lightweight insulation (low inertia)
- Temperature uniformity <±5°C
- Solid state relay control
- PID temperature controller
- Thermocouple
- Independent over heat protection
- Ventilation (manually operated)
OPTIONS
- Chamber made from bricks
- Door made from bricks
- Silicon carbide bottom plates
- Silicon carbide protection of heating elements
- Heat resistant stainless steel bottom plate
- Cooling fan
- Container for inertial gas
- Container for cementation
- Inertial gas connection with flow meter

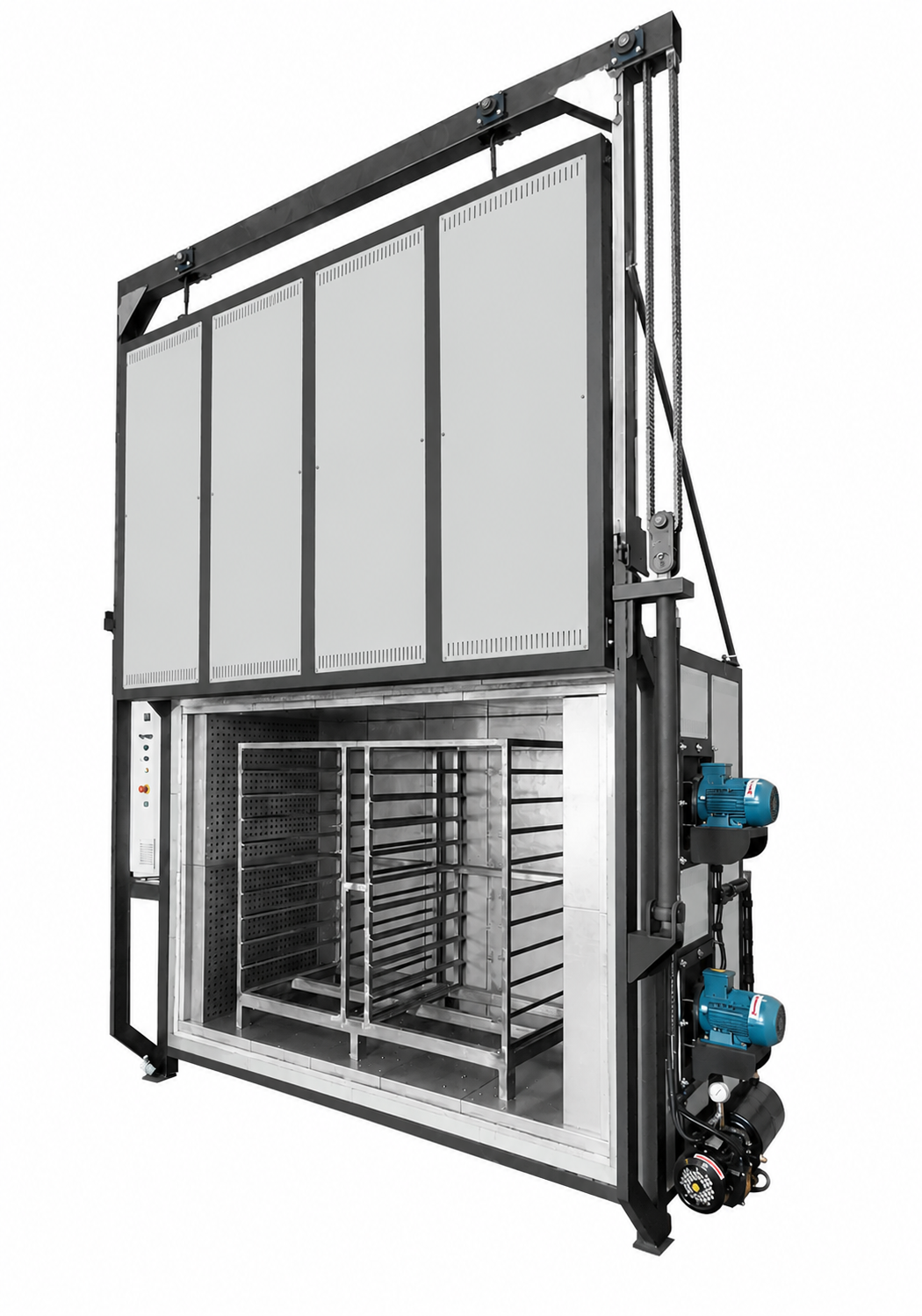

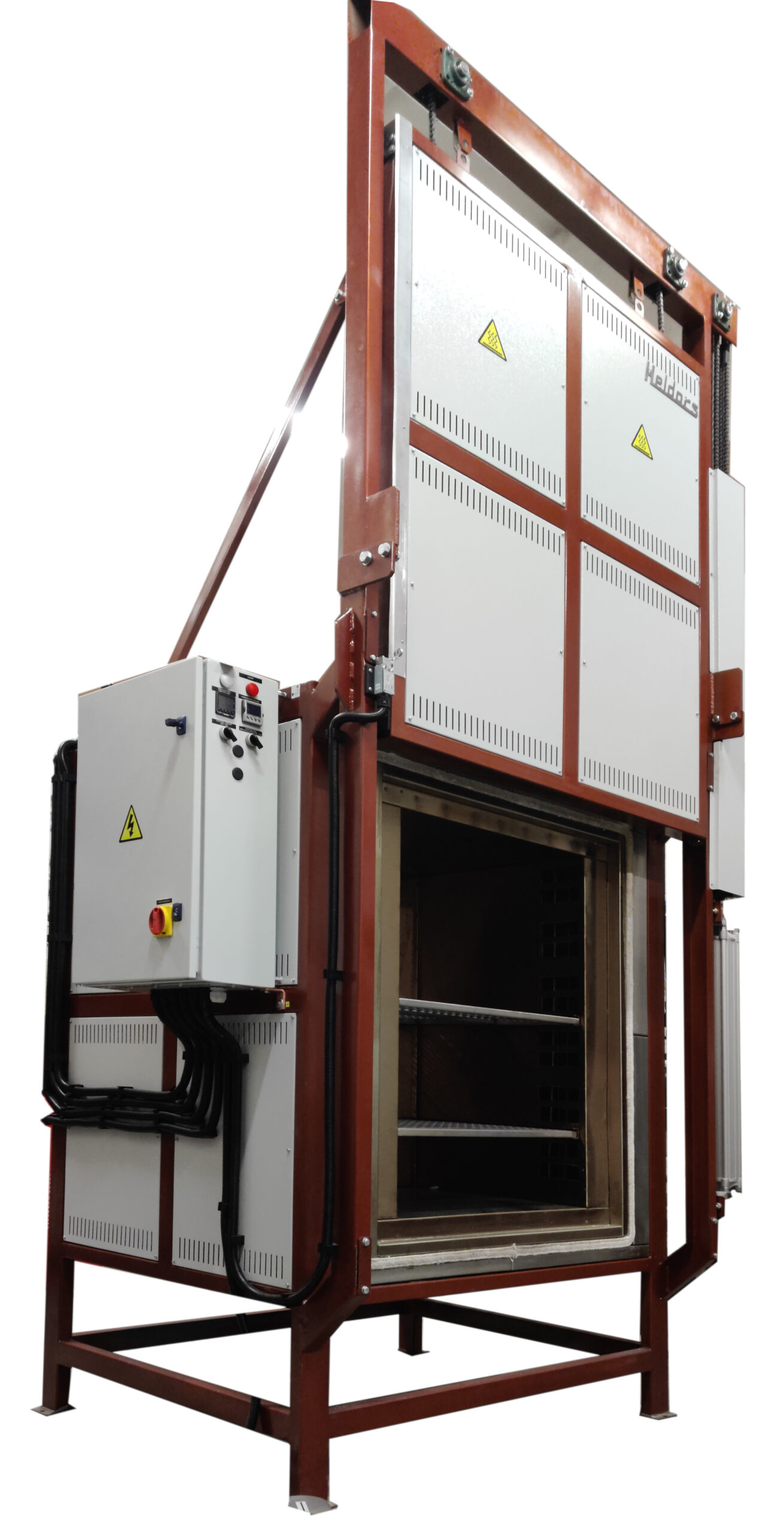

- Lifting up doors
- Automatic door opening(electromechanical, pneumatic, hydraulic) operated by foot or hand switch
- Ramp programmable PID controller
- Touch screen
- Temperature recorder
- Zone control
- Stationary table for load
- Turning table for load
- Sensors for emergency door stop
- Light signals
- Visual alarm for broken heating elements
- RS232
Model | Cont. temp. ⁰C | Max temp. ⁰C | Chamber dimensions, mm | Distance from floor to chamber bottom* | Forced air circulation | Shelves | Max load on shelve | Max load in the chamber | External dimensions, mm* | Chamber volume, l | Heating power, kW | Total power, kW | Voltage/ Phases | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Width | Length | Height | Direction | No | kg | kg | Width | Length | Height | ||||||||
ICO 260_50 | 260 | 260 | 400 | 400 | 300 | 900 | Horizontal | 2 | 20 | 53 | 1030 | 1160 | 1440 | 48 | 2 | 2.6 | 230/1 |
ICO 260_100 | 260 | 260 | 450 | 450 | 480 | 900 | Vertical | 2 | 20 | 107 | 1080 | 790 | 1940 | 97 | 5 | 5.6 | 400/ 3 |
ICO 260_200 | 260 | 260 | 850 | 550 | 480 | 900 | Horizontal | 2 | 25 | 112 | 1480 | 1252 | 1640 | 224 | 6 | 6.6 | 400/ 3 |
ICO 260_400 | 260 | 260 | 850 | 600 | 780 | 620 | Vertical | 2 | 30 | 199 | 1580 | 1020 | 2010 | 398 | 7 | 7.6 | 400/ 3 |
ICO 260_600 | 260 | 260 | 950 | 800 | 800 | 600 | Horizontal | 2 | 40 | 304 | 1680 | 1740 | 1690 | 608 | 8 | 8.6 | 400/ 3 |
ICO 260_800 | 260 | 260 | 950 | 800 | 1080 | 200 | Vertical | 2 | 60 | 410 | 1780 | 1220 | 1990 | 821 | 10 | 10.6 | 400/ 3 |

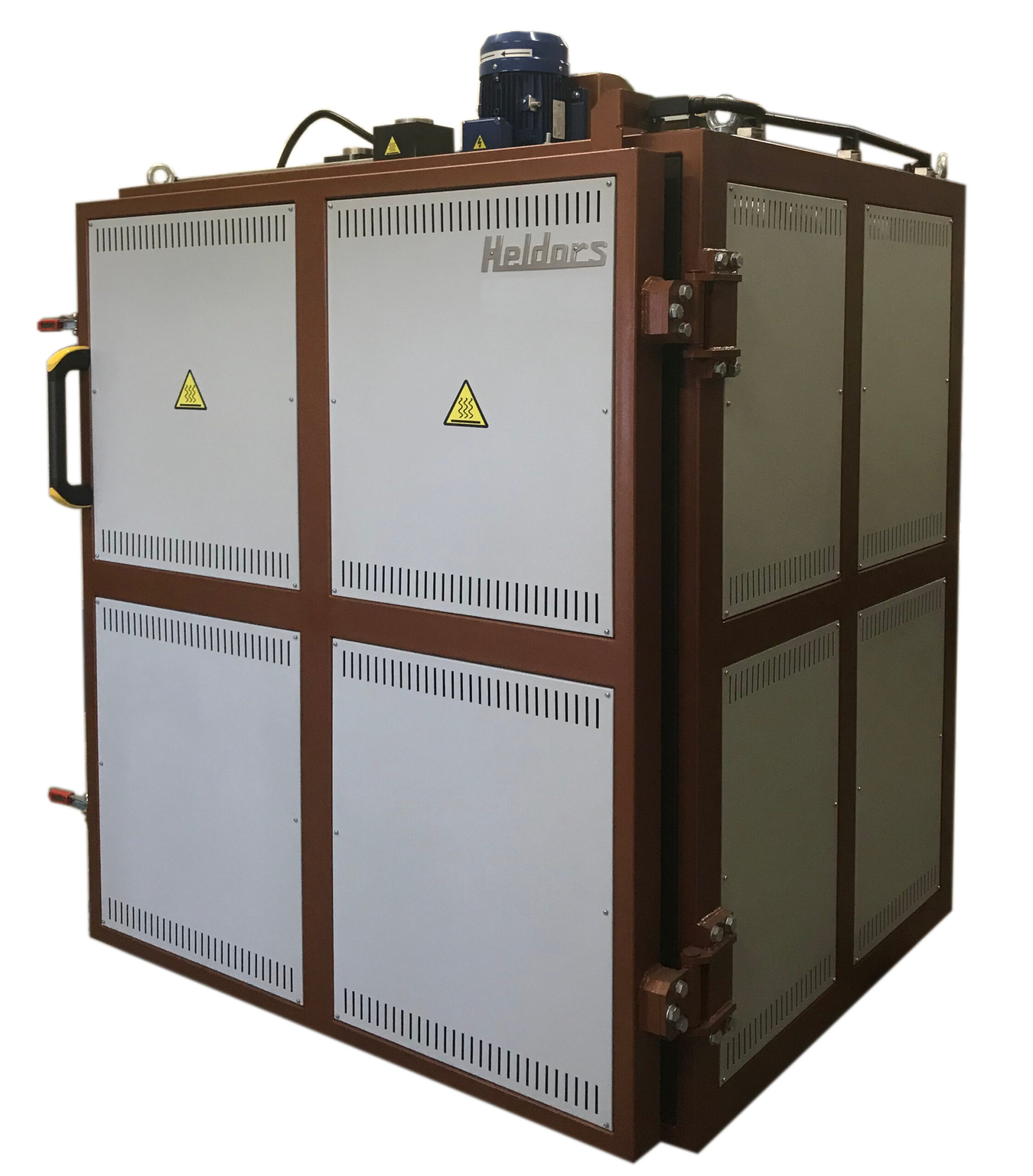

ICO 260_1000 | 260 | 260 | 950 | 900 | 1200 | 200 | Vertical | 0 | 0 | 513 | 1820 | 1360 | 2130 | 1026 | 12 | 12.6 | 400/ 3 |
ICO 260_2000 | 260 | 260 | 1200 | 1400 | 1200 | 120 | Horizontal | 0 | 0 | 672 | 2050 | 2310 | 1600 | 2016 | 30 | 32.2 | 400/ 3 |
ICO 260_2000a | 260 | 260 | 1000 | 2000 | 1000 | 50 | Horizontal | 0 | 0 | 667 | 1785 | 2885 | 1313 | 2000 | 30 | 32.2 | 400/ 3 |
ICO 260_3000 | 260 | 260 | 1300 | 1500 | 1600 | 200 | Horizontal | 0 | 0 | 1780 | 2320 | 2610 | 2160 | 3120 | 45 | 47.2 | 400/ 3 |
ICO 260_5000 | 260 | 260 | 1800 | 1600 | 1800 | 200 | Vertical | 0 | 0 | 2296 | 2820 | 2140 | 2830 | 5184 | 70 | 74.4 | 400/ 3 |
ICO 260_6812 | 260 | 260 | 1760 | 2150 | 1800 | 263 | Horizontal | 0 | 0 | 2703 | 2710 | 3030 | 2360 | 6811 | 75 | 79.4 | 400/ 3 |
Model | Cont. temp. ⁰C | Max temp. ⁰C | Chamber dimensions, mm | Distance from floor to chamber bottom* | Forced air circulation | Shelves | Max load on one shelve | Max load in the chamber | External dimensions, mm* | Chamber volume, l | Heating power, kW | Total power, kW | Voltage/ Phases | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Width | Length | Height | Direction | No | kg | kg | Width | Length | Height | ||||||||
ICO 360_50 | 360 | 360 | 400 | 400 | 300 | 900 | Horizontal | 2 | 20 | 53 | 1090 | 1220 | 1470 | 48 | 3 | 3.6 | 230/1 |

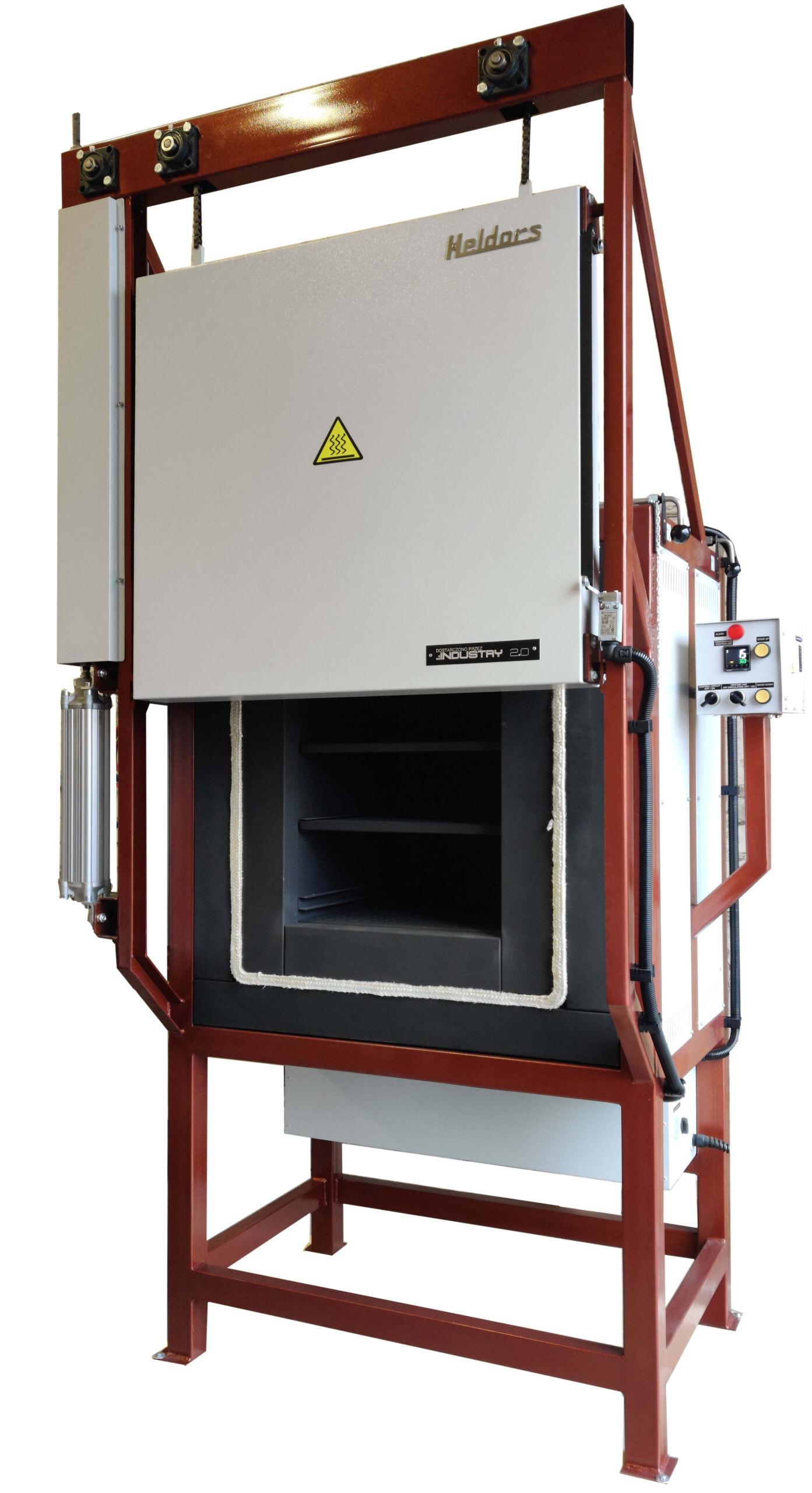

ICO 360_100 | 360 | 360 | 450 | 450 | 480 | 900 | Vertical | 2 | 20 | 107 | 1140 | 850 | 1970 | 97 | 6 | 6.6 | 400/ 3 |
ICO 360_200 | 360 | 360 | 850 | 550 | 480 | 900 | Horizontal | 2 | 25 | 112 | 1480 | 1252 | 1670 | 224 | 7 | 7.6 | 400/ 3 |
ICO 360_400 | 360 | 360 | 850 | 600 | 780 | 620 | Vertical | 2 | 30 | 199 | 1620 | 1060 | 2030 | 398 | 9 | 9.6 | 400/ 3 |
ICO 360_600 | 360 | 360 | 950 | 800 | 800 | 600 | Horizontal | 2 | 40 | 304 | 1720 | 1780 | 1710 | 608 | 10 | 10.6 | 400/ 3 |
ICO 360_800 | 360 | 360 | 950 | 800 | 1080 | 200 | Vertical | 2 | 60 | 410 | 1820 | 1260 | 2010 | 821 | 12 | 12.6 | 400/ 3 |
ICO 360_1000 | 360 | 360 | 950 | 900 | 1200 | 200 | Vertical | 0 | 0 | 513 | 1880 | 1420 | 2160 | 1026 | 14 | 14.6 | 400/ 3 |
ICO 360_2000 | 360 | 360 | 1200 | 1400 | 1200 | 200 | Horizontal | 0 | 0 | 672 | 2050 | 2310 | 1600 | 2016 | 35 | 37.2 | 400/ 3 |
ICO 360_3000 | 360 | 360 | 1300 | 1500 | 1600 | 200 | Horizontal | 0 | 0 | 1780 | 2360 | 2650 | 2180 | 3120 | 50 | 52.5 | 400/ 3 |
ICO 360_5000 | 360 | 360 | 1800 | 1600 | 1800 | 200 | Vertical | 0 | 0 | 2296 | 2860 | 2180 | 2850 | 5184 | 75 | 79.4 | 400/ 3 |
ICO 360_6812 | 360 | 360 | 1760 | 2150 | 1800 | 263 | Horizontal | 0 | 0 | 2703 | 2710 | 3030 | 2360 | 6811 | 80 | 84.4 | 400/ 3 |
Model | Cont. temp. ⁰C | Max temp. ⁰C | Chamber dimensions, mm | Distance from floor to chamber bottom* | Forced air circulation | Shelves | Max load on one shelve | Max load in the chamber | External dimensions, mm* | Chamber volume, l | Heating power, kW | Total power, kW | Voltage/Phases | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Width | Length | Height | Direction | No | kg | kg | Width | Length | Height | ||||||||
ICO 460_50 | 460 | 460 | 350 | 500 | 300 | 900 | Horizontal | 2 | 20 | 58 | 1040 | 1320 | 1470 | 53 | 6 | 6.6 | 400/ 3 |
ICO 460_67 | 460 | 460 | 300 | 750 | 300 | 900 | Horizontal | 0 | 0 | 74 | 960 | 1676 | 1620 | 68 | 8 | 8.6 | 400/ 3 |
ICO 460_72 | 460 | 460 | 400 | 400 | 450 | 900 | Horizontal | 2 | 20 | 79 | 1244 | 1275 | 1577 | 72 | 9 | 9.6 | 400/ 3 |
ICO 460_113 | 460 | 460 | 500 | 500 | 450 | 900 | Vertical | 2 | 25 | 124 | 1167 | 860 | 1750 | 113 | 10 | 10.6 | 400/ 3 |
ICO 460_200 | 460 | 460 | 550 | 750 | 500 | 900 | Horizontal | 2 | 25 | 103 | 1240 | 1440 | 1685 | 206 | 12 | 12.6 | 400/ 3 |
ICO 460_400 | 460 | 460 | 700 | 1000 | 600 | 800 | Horizontal | 2 | 30 | 210 | 1470 | 1980 | 1710 | 420 | 20 | 21.5 | 400/ 3 |
ICO 460_490 | 460 | 460 | 700 | 700 | 1000 | 400 | Horizontal | 2 | 40 | 245 | 1555 | 1672 | 1710 | 490 | 22 | 23.5 | 400/ 3 |
ICO 460_600 | 460 | 460 | 750 | 1200 | 700 | 700 | Horizontal | 2 | 40 | 315 | 1520 | 2180 | 1710 | 630 | 24 | 25.5 | 400/ 3 |
ICO 460_800 | 460 | 460 | 950 | 800 | 1080 | 300 | Vertical | 2 | 60 | 410 | 1820 | 1260 | 2110 | 821 | 30 | 31.5 | 400/ 3 |
ICO 460_1000 | 460 | 460 | 950 | 900 | 1200 | 300 | Vertical | 0 | 0 | 513 | 1880 | 1420 | 2260 | 1026 | 32 | 34.2 | 400/ 3 |
ICO 460_1500 | 460 | 460 | 1000 | 1500 | 1000 | 272 | Vertical | 0 | 0 | 500 | 1910 | 1980 | 1990 | 1500 | 38 | 40.2 | 400/ 3 |
ICO 460_1650 | 460 | 460 | 1100 | 1500 | 1000 | 272 | Vertical | 0 | 0 | 550 | 2010 | 1980 | 1990 | 1650 | 40 | 42.2 | 400/ 3 |
ICO 460_2475 | 460 | 460 | 1100 | 1500 | 1500 | 300 | Horizontal | 0 | 0 | 1619 | 2030 | 2540 | 2140 | 2475 | 42 | 44.2 | 400/ 3 |
ICO 460_3000 | 460 | 460 | 1300 | 1500 | 1600 | 300 | Horizontal | 0 | 0 | 1780 | 2244 | 2518 | 2280 | 3120 | 55 | 57.5 | 400/ 3 |
ICO 460_3328 | 460 | 460 | 1300 | 1600 | 1600 | 300 | Vertical | 0 | 0 | 1832 | 2240 | 2120 | 2480 | 3328 | 55 | 57.5 | 400/ 3 |
ICO 460_5000 | 460 | 460 | 1800 | 1600 | 1800 | 200 | Vertical | 0 | 0 | 2296 | 2860 | 2180 | 2850 | 5184 | 90 | 94.4 | 400/ 3 |
ICO 460_6812 | 460 | 460 | 1760 | 2150 | 1800 | 263 | Horizontal | 0 | 0 | 2703 | 2820 | 3300 | 2443 | 6811 | 110 | 114.4 | 400/ 3 |
Model | Cont. temp. ⁰C | Max temp. ⁰C | Chamber dimensions, mm | Distance from floor to chamber bottom* | Forced air circulation | Shelves | Max load on one shelve | Max load in the chamber | External dimensions, mm* | Chamber volume, l | Heating power, kW | Total power, kW | Voltage/ Phases | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Width | Length | Height | Direction | No | kg | kg | Width | Length | Height | ||||||||
ICO 660_50 | 660 | 660 | 350 | 500 | 300 | 900 | Horizontal | 2 | 20 | 58 | 1080 | 1360 | 1490 | 53 | 8 | 8.6 | 400/ 3 |
ICO 660_67 | 660 | 660 | 300 | 750 | 300 | 900 | Horizontal | 0 | 0 | 74 | 960 | 1676 | 1620 | 68 | 10 | 10.6 | 400/ 3 |
ICO 660_72 | 660 | 660 | 400 | 400 | 450 | 900 | Horizontal | 2 | 20 | 79 | 1244 | 1275 | 1577 | 72 | 10 | 10.6 | 400/ 3 |
ICO 660_113 | 660 | 660 | 500 | 500 | 450 | 900 | Vertical | 2 | 25 | 124 | 1228 | 915 | 1730 | 113 | 10 | 10.6 | 400/ 3 |
ICO 660_200 | 660 | 660 | 550 | 750 | 500 | 900 | Horizontal | 2 | 25 | 103 | 1320 | 1630 | 1710 | 206 | 18 | 18.6 | 400/ 3 |
ICO 660_400 | 660 | 660 | 700 | 1000 | 600 | 800 | Horizontal | 2 | 30 | 210 | 1575 | 1860 | 1880 | 420 | 24 | 25.5 | 400/ 3 |
ICO 660_490 | 660 | 660 | 700 | 700 | 1000 | 400 | Horizontal | 2 | 40 | 245 | 1555 | 1672 | 1730 | 490 | 26 | 27.5 | 400/ 3 |
ICO 660_600 | 660 | 660 | 750 | 1200 | 700 | 700 | Horizontal | 2 | 40 | 315 | 1560 | 2220 | 1730 | 630 | 28 | 29.5 | 400/ 3 |
ICO 660_800 | 660 | 660 | 950 | 800 | 1080 | 300 | Vertical | 2 | 60 | 410 | 1860 | 1300 | 2130 | 821 | 32 | 34.2 | 400/ 3 |
ICO 660_1000 | 660 | 660 | 950 | 900 | 1200 | 300 | Vertical | 0 | 0 | 513 | 1920 | 1460 | 2280 | 1026 | 36 | 38.2 | 400/ 3 |
ICO 660_1500 | 660 | 660 | 1000 | 1500 | 1000 | 272 | Vertical | 0 | 0 | 500 | 1910 | 1980 | 1990 | 1500 | 44 | 46.2 | 400/ 3 |
ICO 660_1650 | 660 | 660 | 1100 | 1500 | 1000 | 272 | Vertical | 0 | 0 | 550 | 2010 | 1980 | 1990 | 1650 | 45 | 47.2 | 400/ 3 |
ICO 660_1768 | 660 | 660 | 850 | 1600 | 1300 | 700 | Horizontal | 0 | 0 | 600 | 1800 | 2560 | 2000 | 1768 | 48 | 50.5 | 400/3 |
ICO 660_2475 | 660 | 660 | 1100 | 1500 | 1500 | 300 | Horizontal | 0 | 0 | 1619 | 2040 | 2600 | 2200 | 2475 | 47 | 49.2 | 400/ 3 |
ICO 660_3000 | 660 | 660 | 1300 | 1500 | 1600 | 300 | Horizontal | 0 | 0 | 1780 | 2400 | 2690 | 2300 | 3120 | 60 | 62.4 | 400/ 3 |
ICO 660_3328 | 660 | 660 | 1300 | 1600 | 1600 | 300 | Vertical | 0 | 0 | 1832 | 2240 | 2120 | 2480 | 3328 | 60 | 62.4 | 400/ 3 |
ICO 660_5000 | 660 | 660 | 1800 | 1600 | 1800 | 300 | Vertical | 0 | 0 | 2296 | 2900 | 2220 | 2970 | 5184 | 110 | 114.4 | 400/ 3 |
ICO 660_6812 | 660 | 660 | 1760 | 2150 | 1800 | 300 | Horizontal | 0 | 0 | 2703 | 2860 | 3340 | 2500 | 6811 | 120 | 124.4 | 400/ 3 |
Model | Cont. temp. ⁰C | Max temp. ⁰C | Chamber dimensions, mm | Distance from floor to chamber bottom* | Forced air circulation | Shelves | Max load on one shelve | Max load in the chamber | External dimensions, mm* | Chamb. volume, l | Heating power, kW | Total power, kW | Voltage/ Phases | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Width | Length | Height | Direction | No | kg | kg | Width | Length | Height | ||||||||
ICO 860_50 | 860 | 860 | 350 | 500 | 300 | 900 | Horizontal | – | – | 58 | 1100 | 1375 | 1510 | 53 | 9 | 9.6 | 400/ 3 |
ICO 860_78 | 860 | 860 | 400 | 650 | 300 | 900 | Horizontal | – | – | 86 | 1275 | 1745 | 1600 | 78 | 12 | 12.6 | 400/ 3 |
ICO 860_100 | 860 | 860 | 400 | 600 | 400 | 900 | Horizontal | – | – | 106 | 1214 | 1475 | 1610 | 96 | 12 | 12.6 | 400/ 3 |
ICO 860_200 | 860 | 860 | 550 | 750 | 500 | 900 | Horizontal | – | – | 103 | 1420 | 1730 | 1710 | 206 | 20 | 21 | 400/ 3 |
ICO 860_343 | 860 | 860 | 700 | 700 | 700 | 700 | Vertical | – | – | 172 | 1660 | 1370 | 2050 | 343 | 25 | 26 | 400/ 3 |
ICO 860_400 | 860 | 860 | 700 | 1000 | 600 | 800 | Horizontal | – | – | 210 | 1610 | 2120 | 1730 | 420 | 28 | 30 | 400/ 3 |
ICO 860_600 | 860 | 860 | 750 | 1200 | 700 | 700 | Horizontal | – | – | 315 | 1660 | 2320 | 1730 | 630 | 32 | 34 | 400/ 3 |
ICO 860_800 | 860 | 860 | 950 | 800 | 1080 | 300 | Vertical | – | – | 410 | 1960 | 1400 | 2130 | 821 | 36 | 38 | 400/ 3 |
ICO 860_1000 | 860 | 860 | 950 | 900 | 1200 | 300 | Vertical | – | – | 513 | 2020 | 1560 | 2280 | 1026 | 40 | 42 | 400/ 3 |
ICO 860_2000 | 860 | 860 | 1200 | 1400 | 1200 | 300 | Horizontal | – | – | 1008 | 2270 | 2580 | 1860 | 2016 | 60 | 64 | 400/ 3 |
ICO 860_3060 | 860 | 860 | 1500 | 1200 | 1700 | 300 | Horizontal | – | – | 1765 | 2580 | 2490 | 2415 | 3060 | 80 | 84 | 400/ 3 |
Model | Contin. temp. ⁰C | Max temp. ⁰C | Chamber dimensions, mm | Max load in the chamber | External dimensions, mm* | Chamb. volume, l | Power, kW | Voltage/ Phases | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
W | D | H | kg | W | D | H | ||||||
ICF 1200_30 | 1200 | 1200 | 300 | 350 | 250 | 29 | 880 | 1060 | 1235 | 26 | 5.5 | 230/1 |
ICF 1200_40 | 1200 | 1200 | 330 | 450 | 260 | 42 | 920 | 1160 | 1260 | 39 | 5.5 | 230/1 |
ICF 1200_50 | 1200 | 1200 | 350 | 520 | 250 | 50 | 940 | 1230 | 1330 | 46 | 8 | 400/ 3 |
ICF 1200_70 | 1200 | 1200 | 350 | 770 | 250 | 74 | 350 | 770 | 250 | 67 | 10 | 400/ 3 |
ICF 1200_92 | 1200 | 1200 | 430 | 420 | 510 | 101 | 1340 | 1380 | 1805 | 92 | 15 | 400/ 3 |
ICF 1200_168 | 1200 | 1200 | 600 | 700 | 400 | 185 | 1395 | 1410 | 1675 | 168 | 25 | 400/ 3 |
ICF 1200_216 | 1200 | 1200 | 400 | 1500 | 360 | 238 | 1220 | 2300 | 1500 | 216 | 30 | 400/ 3 |
ICF 1200_340 | 1200 | 1200 | 750 | 1120 | 400 | 280 | 750 | 1120 | 400 | 336 | 42 | 400/ 3 |
ICF 1200_660 | 1200 | 1200 | 1000 | 1320 | 500 | 550 | 1000 | 1320 | 500 | 660 | 50 | 400/ 3 |
ICF 1200_1100 | 1200 | 1200 | 1000 | 1800 | 600 | 720 | 1000 | 1800 | 600 | 1080 | 70 | 400/ 3 |
ICF 1200_1450 | 1200 | 1200 | 1100 | 2200 | 600 | 968 | 1100 | 2200 | 600 | 1452 | 95 | 400/ 3 |
